Tipo 4 tiempos, nafta
Monocilindrico, refrigerado por aire
Eje horizontal
Diámetro x carrera 60 x 43 mm
Desplazamiento de pistón 121 cm3
Máxima Potencia 4.0 HP / 4000 rpm
Potencia Continua 2.8 HP. / 3000 rpm
Torque máximo 0.76/2600 kgf.m7r.p.m.
Rotación del eje Sentido horario
Sin tanque
Lubricante Aceite de motor SAE 10w-30, 20w, 30w
Tipo de lubricación Salpicadura mecánica
Capacidad de aceite lubricante 0.95 lt
Sistema de ignición Electrónica
Sistema de arranque Manual
Peso seco 15 kg.
Dimensiones (largo/ancho/alto) 299 x 330 x 366 mm

Powerful. Reliable. Durable.
With the GX390, you’re looking at some of the best engines in the business. Powerful, Reliable, Durable, and Quiet. Honda’s GX Series is power you can trust, and then some.

Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 88 X 64 mm
Displacement 389 cm3
Net Power Output* 11.7 hp (8.7 kW) @ 3,600 rpm
Net Torque 19.5 lb-ft (26.5 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.2:1
Lamp/Charge coil options 25W, 50W / 1A, 3A, 10A, 18A
Carburetor Butterfly Float Type
Ignition System Digital CDI with variable timing
Starting System Recoil/electric
Lubrication System Splash
Governor System Centrifugal Mass Type
Air Cleaner Dual element
Oil Capacity 1.16 US qt (1.1 L)
Fuel Tank Capacity 6.4 U.S. qts (6.1 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 69 lb (31.5 kg)

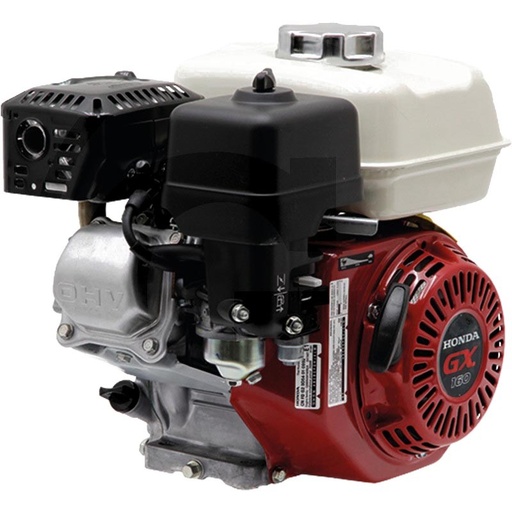

GX160
Quality and performance come standard.
Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX160 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 68 X 45 mm
Displacement 163 cm3
Net Power Output* 4.8 hp (3.6 kW) @ 3,600 rpm
Net Torque 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 9.0 : 1
Lamp/Charge coil options 25W, 50W / 1A, 3A, 7A
Carburetor Butterfly
Ignition System Transistorized magneto
Starting System Recoil Starter
Lubrication System Splash
Governor System Centrifugal Mechanical
Air Cleaner Dual Element
Oil Capacity 0.61 US qt. (0.58 L)
Fuel Tank Capacity 3.3 U.S. qts (3.1 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 33 lbs. (15.1 kg)

GX120/160/200
Quality and performance come standard.
Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX160, live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.


Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 68 X 54 mm
Displacement 196 cm3
Net Power Output* 5.8 hp (4.3 kW) @ 3,600 rpm
Net Torque 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.5:1
Lamp/Charge coil options 25W, 50W / 1A, 3A, 7A
Carburetor Butterfly
Ignition System Transistorized magneto
Starting System Recoil Starter
Lubrication System Splash
Governor System Mechanical
Air Cleaner Dual element
Oil Capacity 0.63 US qt (0.6l)
Fuel Tank Capacity 3.3 U.S. qts (3.1 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 35 lbs. (16.1 kg)

Motor estacionario de 5.5 HP, con sistema OHV (válvulas a la cabeza), de eje horizontal con arranque manual y alerta de aceite que hace detener el equipo en caso de bajo nivel de aceite. Genera bajas emisiones , es liviano y fácil de mantener. Este motor estacionario es perfecto para compresores de aire, generadores y bombas. Hidrolavadoras, cortadoras de césped, kartings, equipos para agricultura, martillos, sierras para concreto, etc.

Tipo de Motor Monocilíndrico 4 tiempos enfriado por aire (OHV)
Cilindrada 163 cm3
Potencia Neta 3.6 kW (4.8 HP) / 3600 RPM
Potencia Nominal 2.9 kW (3.9 HP) / 3600 RPM
Relación de Compresión 8.5 : 1
Torque 10.3 Nm / 1.05 Kgm / 2500 RPM
Encendido Transistorizado
Arranque Manual

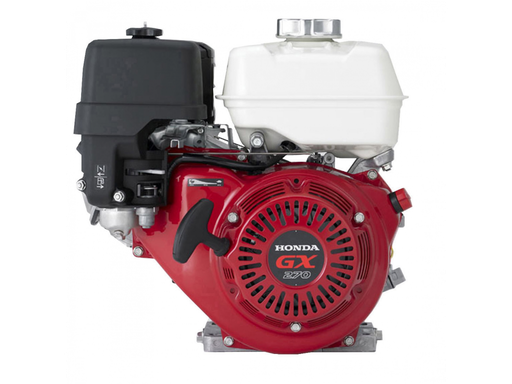

Powerful. Reliable. Durable.
With the GX270, you’re looking at some of the best engines in the business. Powerful, Reliable, Durable, and Quiet. Honda’s GX Series is power you can trust, and then some.

Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 77 X 58 mm
Displacement 270 cm3
Net Power Output* 8.4 hp (6.3 kW) @ 3,600 rpm
Net Torque 14.1 lb-ft (19.1 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.5:1
Lamp/Charge coil options 25W, 50W / 1A, 3A, 10A, 18A
Carburetor Butterfly Float Type
Ignition System Digital CDI with variable ignition timing
Starting System Recoil/electric
Lubrication System Splash
Governor System Centrifugal Mass Type
Air Cleaner Dual element
Oil Capacity 1.16 US qt (1.1 L)
Fuel Tank Capacity 5.6 U.S. qts (5.3 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 55 lb (25 kg)
