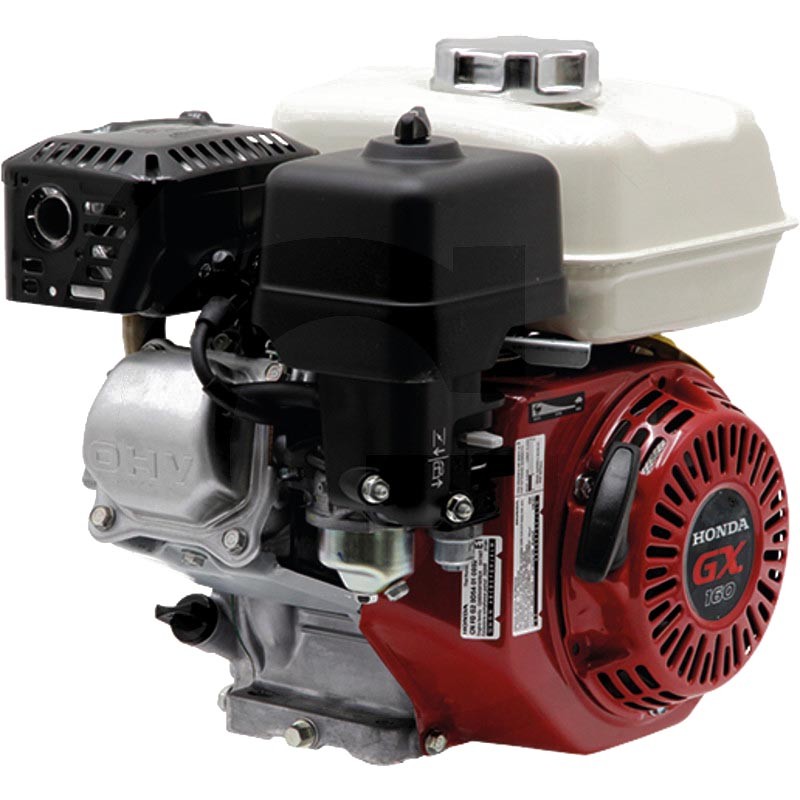

MOTOR ESTACIONARIO-EJE RECTO MILIMETRICO GX 160
GX160
Quality and performance come standard.
Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX160 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.
Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 68 X 45 mm
Displacement 163 cm3
Net Power Output* 4.8 hp (3.6 kW) @ 3,600 rpm
Net Torque 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 9.0 : 1
Lamp/Charge coil options 25W, 50W / 1A, 3A, 7A
Carburetor Butterfly
Ignition System Transistorized magneto
Starting System Recoil Starter
Lubrication System Splash
Governor System Centrifugal Mechanical
Air Cleaner Dual Element
Oil Capacity 0.61 US qt. (0.58 L)
Fuel Tank Capacity 3.3 U.S. qts (3.1 liters)
Fuel Unleaded 86 octane or higher
Dry Weight 33 lbs. (15.1 kg)
